Sigen EV AC Charger
Charge at home.
Fit your routine.
Your vehicle, parking position and electrical supply shape the installation. Solar integration depends on the equipment you choose.
Sigen EV AC charger. Exact equipment is confirmed in your written quote.
- Vehicle connector and charging rate
- Available circuit capacity and supply phase
- Metering required for surplus-solar charging
Fully installed price for standard single-storey installations in Perth & Bunbury WA. Site-specific extras are itemised before you commit. See extra costs.
Your home.
The right connection.
Your vehicle, parking position and electrical supply shape the installation. Solar integration depends on the equipment you choose.
More solar.
Add panel capacity without buying another inverter when the existing system can support it.
Explore this direction ↗Solar now. Battery later.
Install solar today and preserve a clearly nominated storage pathway for the future.
Explore this direction ↗Solar + battery.
Design generation and storage together as one complete home energy system.
Explore this direction ↗Add a battery.
Match storage, controls and backup options to the solar equipment already at the property.
Explore this direction ↗Charge your car.
Put a dedicated charging circuit on the home, matched to the vehicle and able to favour solar surplus where the equipment supports it.
Explore this direction ↗Good questions.
Plain answers.
The detail should be easy to find.
When would I choose the AC charger over the Sigen DC module?
When the car parks somewhere the SigenStor is not. The [DC charging module](/product/sigen-ev-dc-charging-module) is part of the SigenStor stack and lives where the stack lives. If your charge point is at the other end of the house, or on a different wall entirely, the AC charger is the practical answer. You give up bidirectional vehicle-to-home capability and DC fast charging, and you gain the freedom to put the charge point where the car actually parks.
Do I need a SigenStor system to use it?
No, though the integration is the reason to pick it. It functions as a standard 32A AC charger. Paired with a Sigen Energy Controller and battery it comes under one monitoring platform in the mySigen app, with charging coordinated against solar generation and battery state. Bought on its own, it is a competent charger with a 2-year warranty and no particular advantage over the alternatives on this site.
Which power rating applies to my home?
7kW on single phase, 11kW or 22kW on three phase. The 5m tethered Type 2 cable is the shortest in our range alongside the Wallbox, so check the distance from the wall to your car's charge port before ordering. Single-phase homes are limited to 7kW regardless of which unit is bought, which is about 40km of range per hour.
What warranty and support come with it?
2 years, with installation and service cover to match when we install. PSW Energy is a Sigenergy Gold Certified Installer, which is the tier we were [recognised at in WA](/learn/psw-energy-sigenergy-gold-certified-installer). Monitoring configuration and network integration are part of the install, and [PSW Life Support](/psw-life-support) runs afterwards. Installation cost is quoted against your switchboard and cable run rather than assumed.
Full specifications
Specifications.
Review the hardware, installation and warranty details.
System
- Make
- Sigenergy
- Model
- Sigen EV AC Charger
- Charger type
- AC Fast Charger (level 2)
- Software
- mySigen
- Max output
- 32 amp
- Installation
- 'Add to quote' for installation costs
- Inclusion 1
- Monitoring configuration & network integration (with installation)
- Inclusion 2
- PSW Life Support (with installation)
Warranty
- Warranty
- 2 year
- Installation & service warranty
- 2 year (with installation)
Quote basis
Installation & quote details
- Charger unit and mounting
- Switchboard protection and circuit
- Cable run up to 10 m included
- Electrical compliance certificate
- App pairing and first charge test
Your written quote confirms the final equipment, site conditions, eligibility and any extra work before you commit.
When extra costs apply ↗More about Sigen EV AC Charger

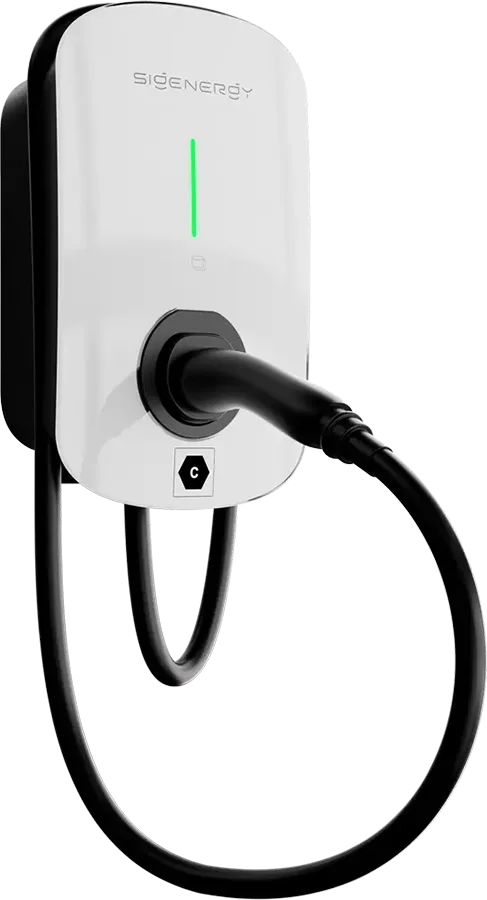

- Sigen EV AC Charger
- 7, 11 or 22 kW fast charger
- Type 2 (5m) handle
- mySigen App
- 2 year warranty
- PSW Life Support
Electric vehicle charging is flexible with SigenStor. Choose the Sigen EV AC Charger when your car’s charge point is different from the SigenStor’s installed location.
Compatible products.
Level up your Sigen AC EV Charger function with compatible upgrades by PSW Energy. Discover: Sigenergy defines a new digital era ›
Gateway

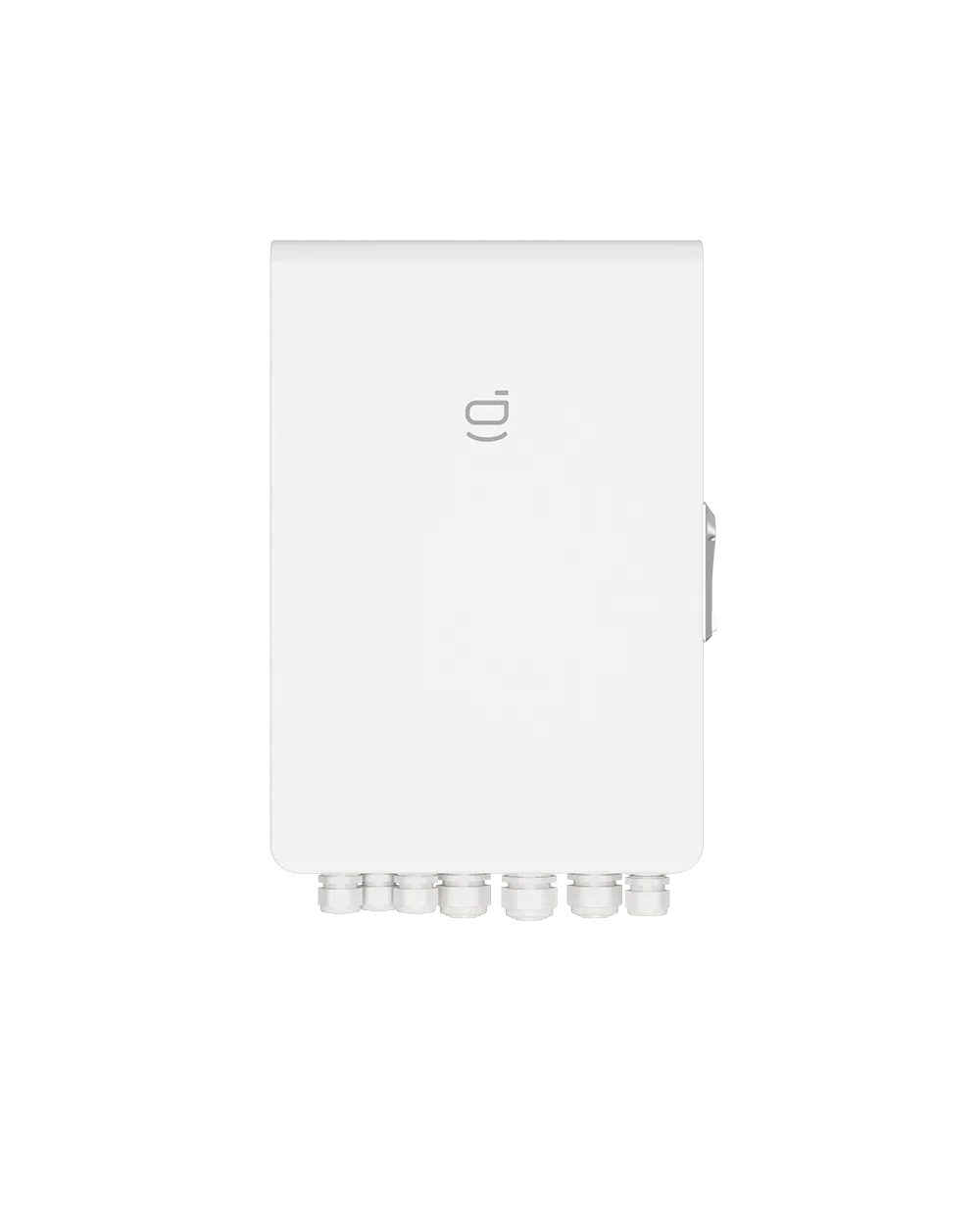

- Sigen Energy Gateway
- 1 or 3 phase
- Consumption/supply monitoring
- Blackout protection options
Battery

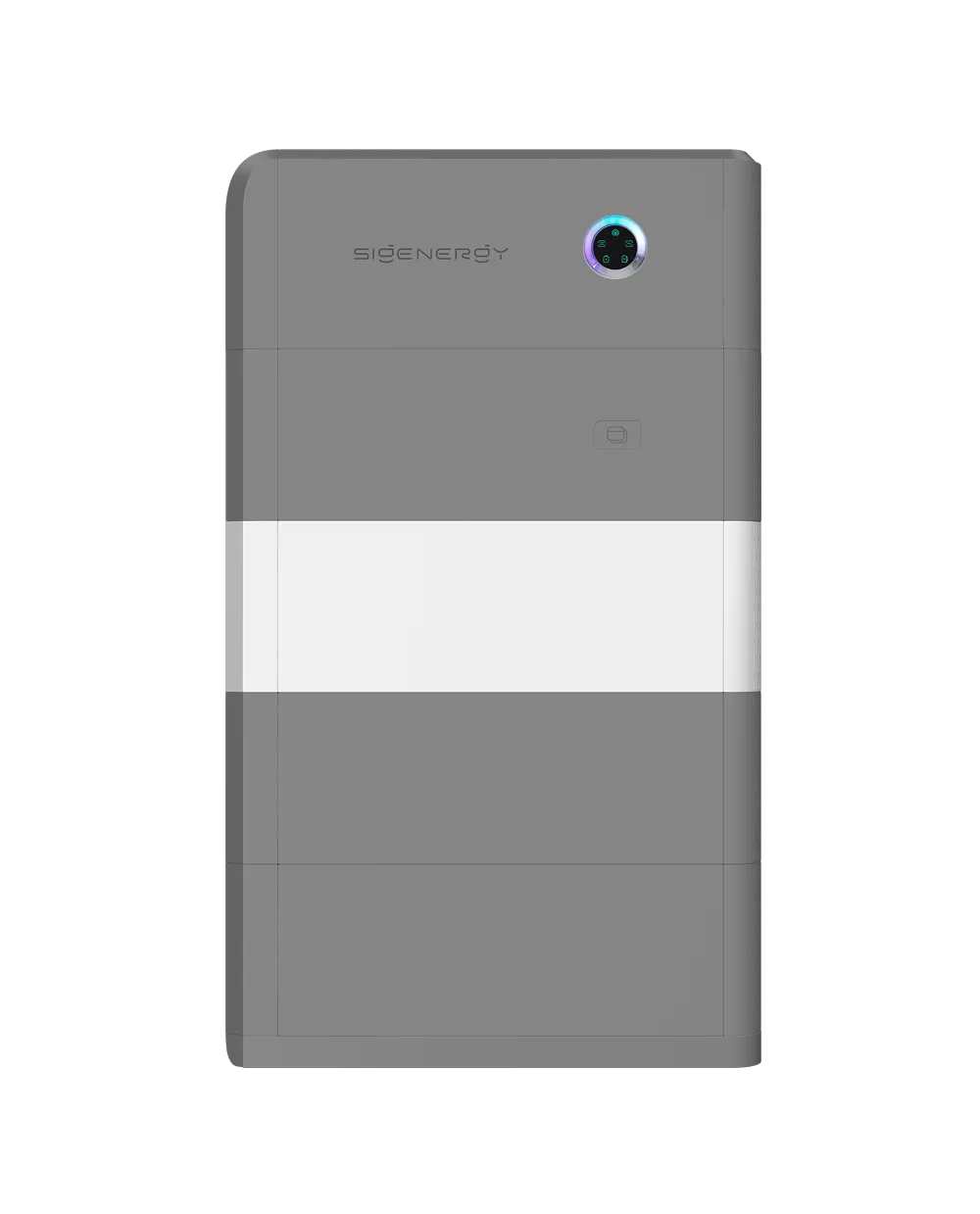

- Sigen Battery Module
- DC Coupled
- 5 or 8 kWh
- LFP Safe Battery Chemistry + Sigen Shield
Controller

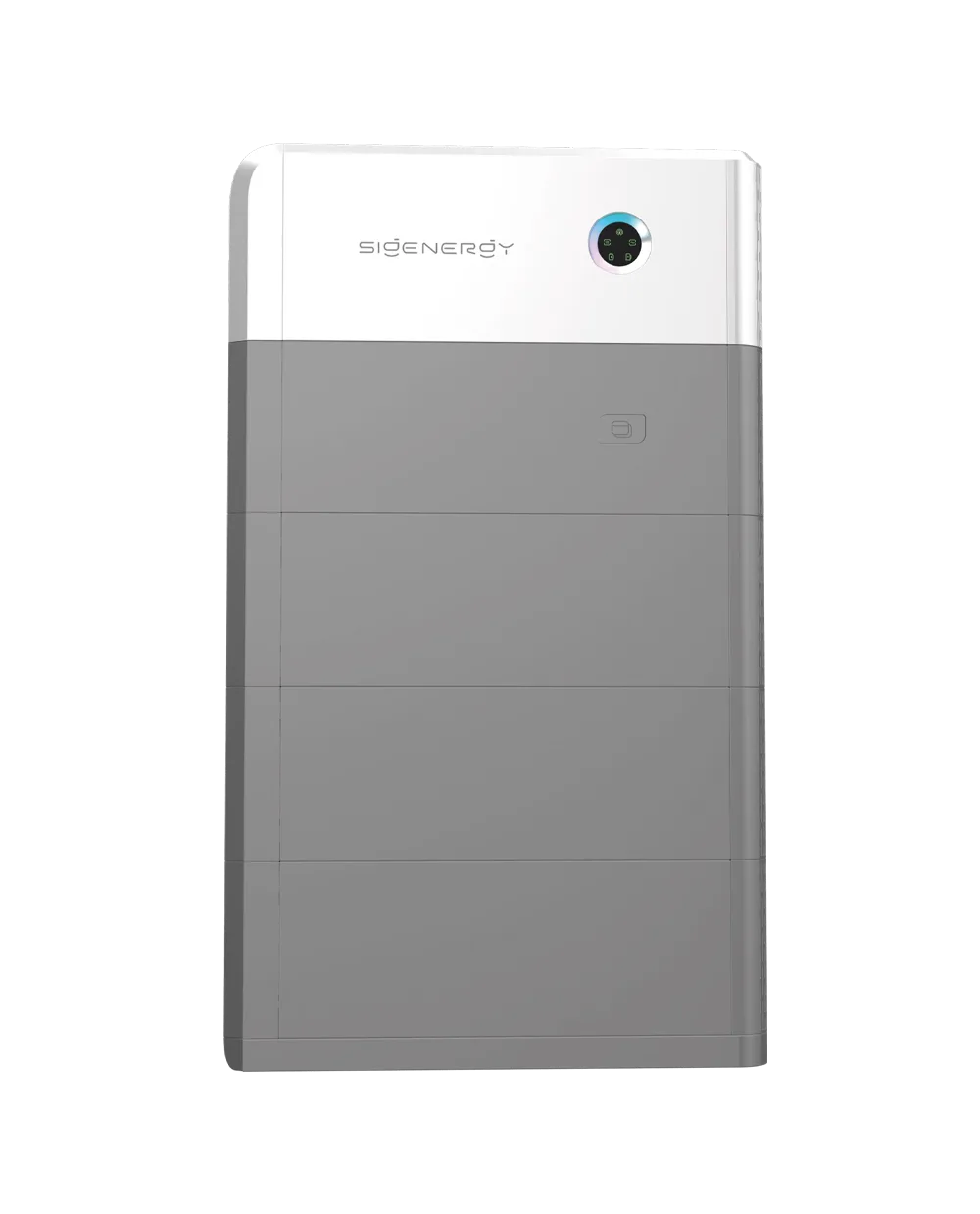

- Sigen Energy Controller/Inverter
- 1 or 3 phase
- 3 to 29.9 kW
- Solar and Battery inverter + BMS + EMS
Uninterrupted electric vehicle driving freedom begins at the point of charge. Ensure an local expert by your side, always with PSW Energy.
