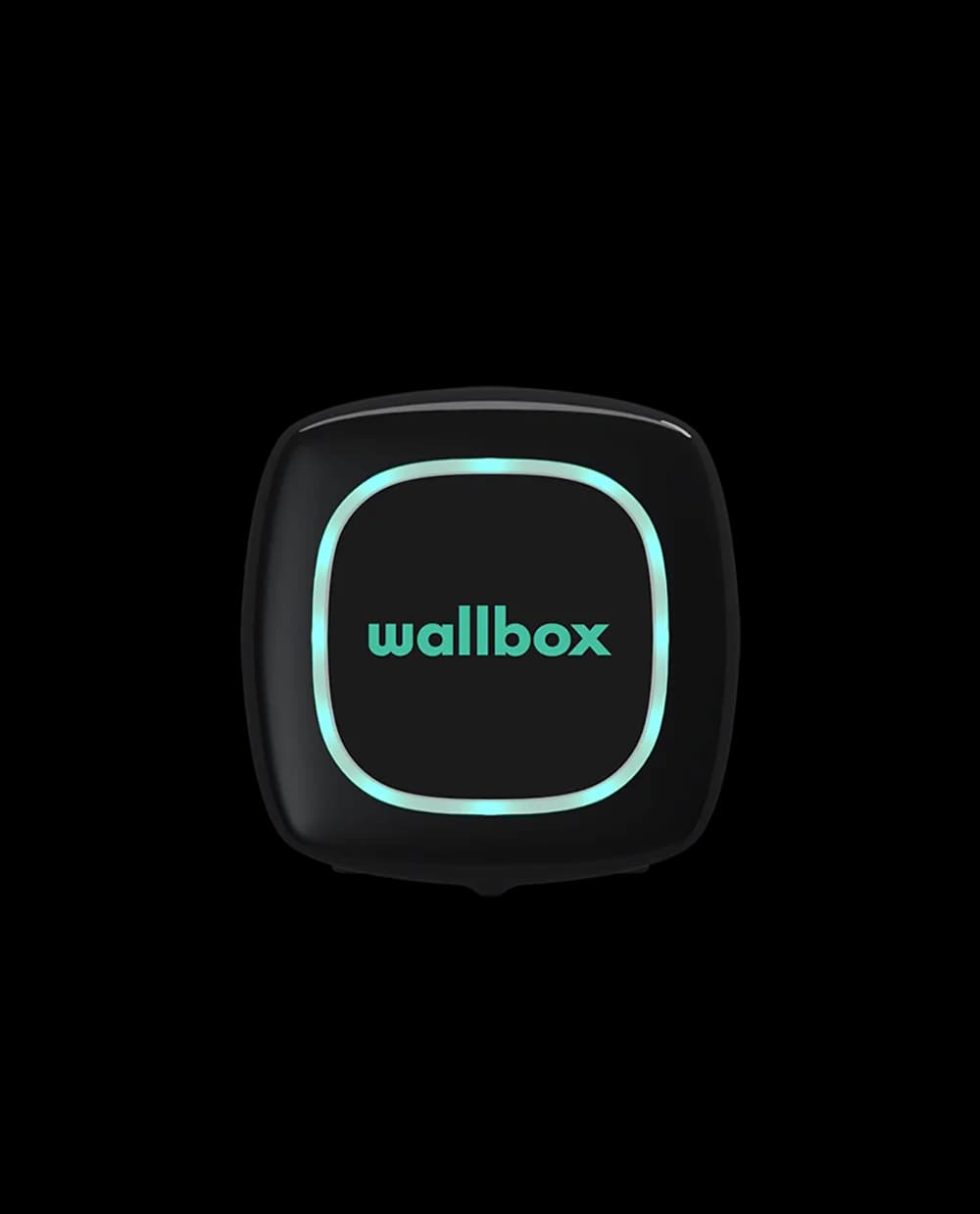

wallbox Pulsar Plus EV charger

Charge at home.
Fit your routine.

Your vehicle, parking position and electrical supply shape the installation. Solar integration depends on the equipment you choose.

Legacy product · check availability

Wallbox Pulsar Plus family. Exact equipment is confirmed in your written quote.

Vehicle connector and charging rate
Available circuit capacity and supply phase
Metering required for surplus-solar charging

Installed price on quote

Choose your option.

Ask a question

Fully installed price for standard single-storey installations in Perth & Bunbury WA. Site-specific extras are itemised before you commit. See extra costs.

A few questions first ↓

Your home.
The right connection.

Your vehicle, parking position and electrical supply shape the installation. Solar integration depends on the equipment you choose.

More solar.

Add panel capacity without buying another inverter when the existing system can support it.

Explore this direction ↗

Solar now. Battery later.

Install solar today and preserve a clearly nominated storage pathway for the future.

Explore this direction ↗

Solar + battery.

Design generation and storage together as one complete home energy system.

Explore this direction ↗

Add a battery.

Match storage, controls and backup options to the solar equipment already at the property.

Explore this direction ↗

Charge your car.

Put a dedicated charging circuit on the home, matched to the vehicle and able to favour solar surplus where the equipment supports it.

Explore this direction ↗

Good questions.
Plain answers.

The detail should be easy to find.

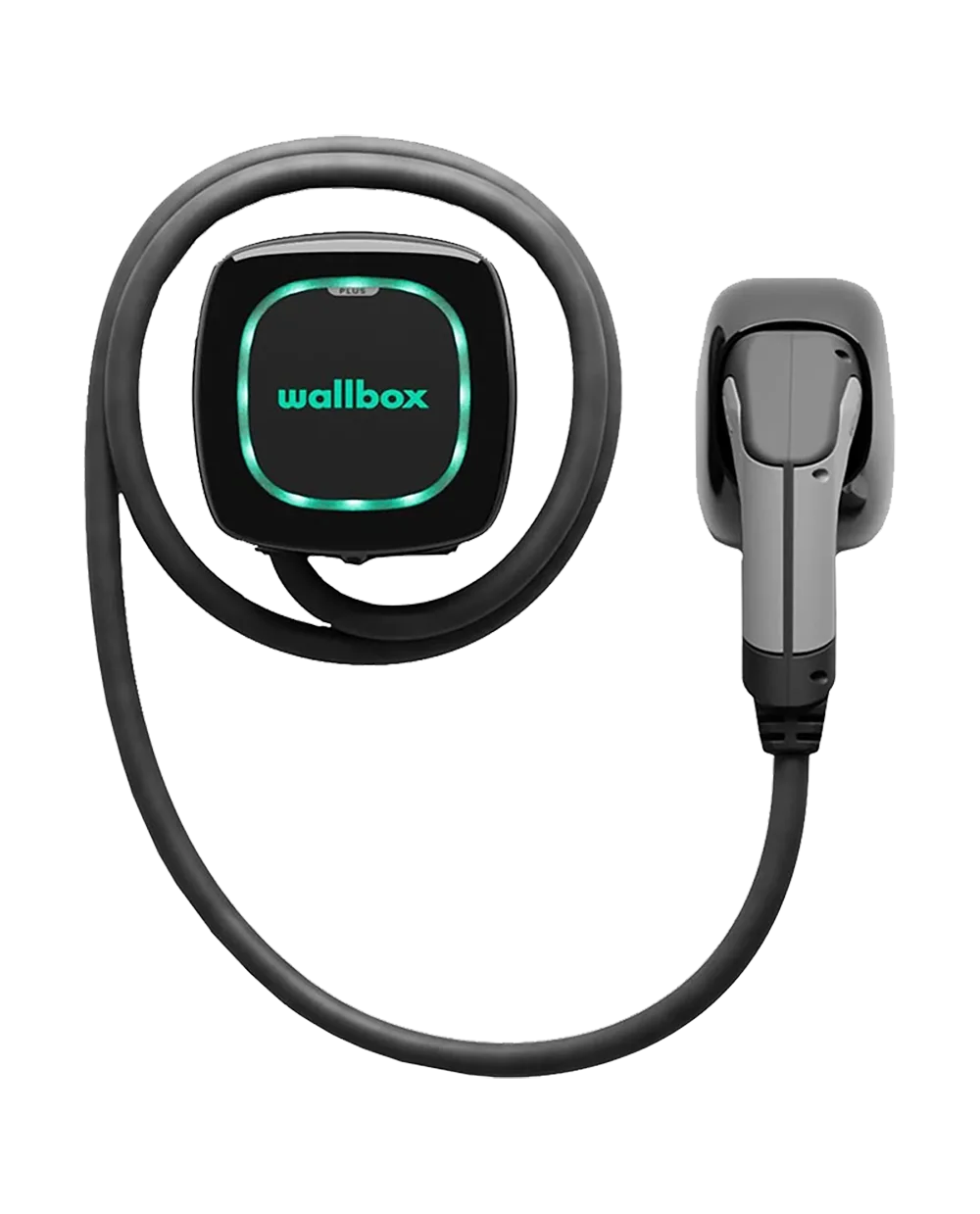

How big is the Pulsar Plus?

Small enough that it disappears on a garage wall. It is the most compact charger in our range, with a 5m tethered Type 2 cable, and it is the one people choose when the charger is going somewhere visible. The short cable is the trade: 5m reaches a car parked close to the wall, and it does not reach across a double garage to a car parked nose-out. Measure the run before you order, because a charger that does not reach is an expensive ornament.

Can it charge from surplus solar?

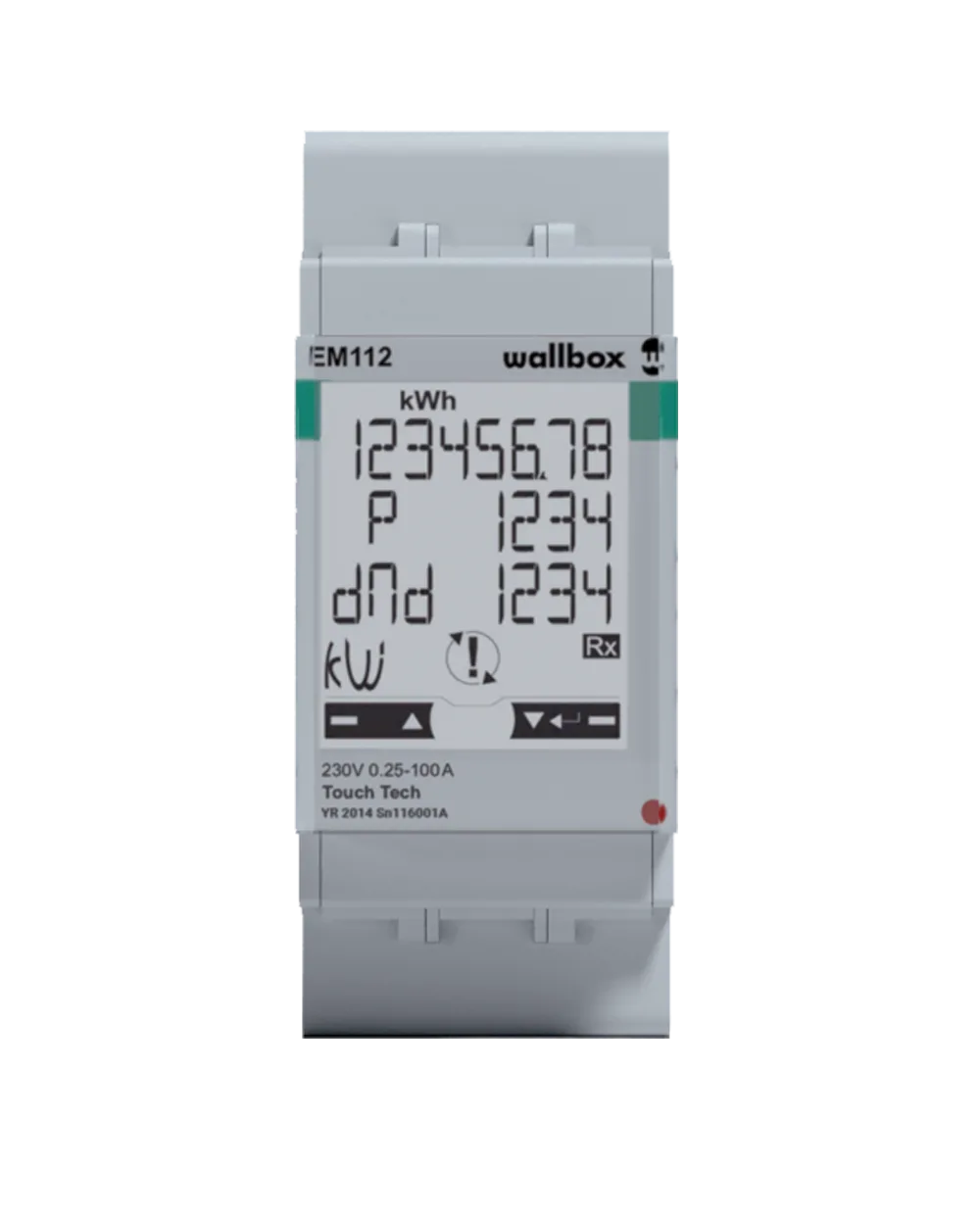

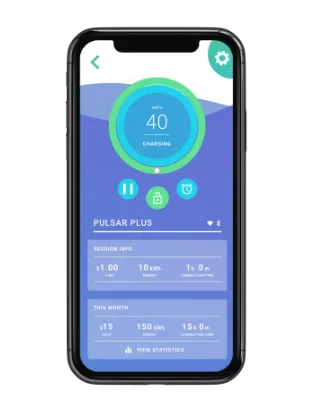

Yes, with a compatible power meter added. Solar optimisation control is a metered function rather than a built-in one, so budget for the meter if following your solar matters to you. Charge control, scheduling, statistics and notifications run through the myWallbox app on iOS and Android without any extra hardware.

Which version do I need?

7kW for single-phase homes, 22kW for three-phase. Both run at up to 32A. Almost every Perth home is single phase, which means 7kW and roughly 40km of range an hour, which is an overnight charge and then some. Three-phase supply is the only reason to consider the 22kW model.

Does PSW Energy install the Pulsar Plus?

It is stocked as a collection or delivery item, so ask for installation on the quote. Unlike the Goodwe HCA, Sungrow and Tesla Wall Connector units, this one is not listed with in-house installation as standard. We can still fit it. Add it to a quote, say you want it installed, and we will price the electrical work against your switchboard and cable run. Your written quote confirms the current manufacturer warranty term.

Full specifications
