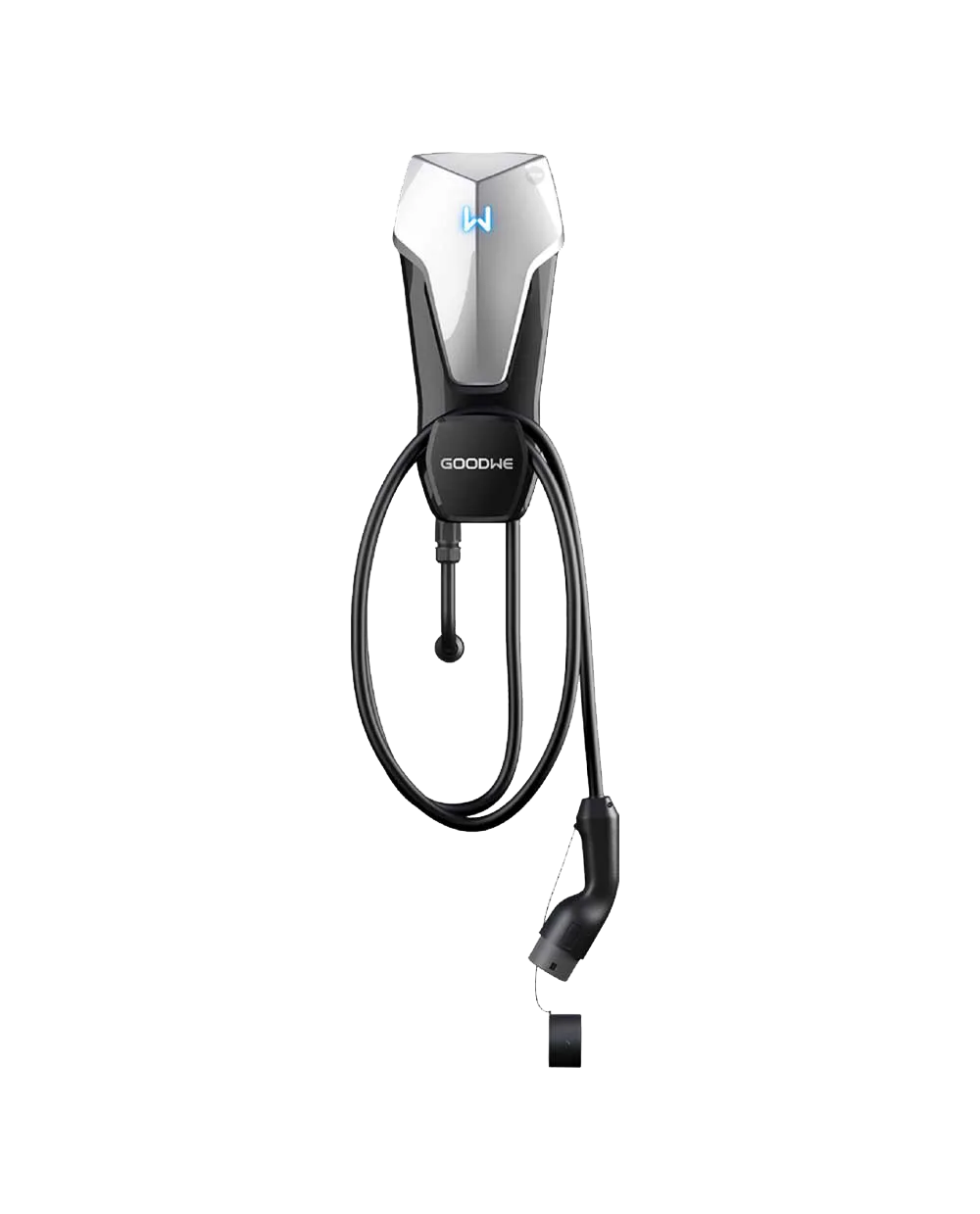

Goodwe HCA EV charger
Charge at home.
Fit your routine.
Your vehicle, parking position and electrical supply shape the installation. Solar integration depends on the equipment you choose.
GoodWe HCA EV charger. Exact equipment is confirmed in your written quote.
- Vehicle connector and charging rate
- Available circuit capacity and supply phase
- Metering required for surplus-solar charging
Fully installed price for standard single-storey installations in Perth & Bunbury WA. Site-specific extras are itemised before you commit. See extra costs.
Your home.
The right connection.
Your vehicle, parking position and electrical supply shape the installation. Solar integration depends on the equipment you choose.
More solar.
Add panel capacity without buying another inverter when the existing system can support it.
Explore this direction ↗Solar now. Battery later.
Install solar today and preserve a clearly nominated storage pathway for the future.
Explore this direction ↗Solar + battery.
Design generation and storage together as one complete home energy system.
Explore this direction ↗Add a battery.
Match storage, controls and backup options to the solar equipment already at the property.
Explore this direction ↗Charge your car.
Put a dedicated charging circuit on the home, matched to the vehicle and able to favour solar surplus where the equipment supports it.
Explore this direction ↗Good questions.
Plain answers.
The detail should be easy to find.
What do I need for sun-connected charging?
A Goodwe Homekit energy meter. The charger cannot see your solar without it. The HCA works as a conventional 32A charger out of the box. Solar-following charging is the feature worth having, and it depends on the Homekit meter reporting consumption and export. If you already run a Goodwe DNS-G3 or SDT-G2 inverter, both are HCA compatible and the addition is straightforward. The meter is quoted separately where one is not already fitted.
Which power rating should I choose?
7kW on single phase, 11kW or 22kW on three phase. The supply at your switchboard decides it. Single-phase Perth homes get 7kW, which is around 40km of range an hour and a full overnight charge for normal driving. Choosing 22kW without three-phase power is not an upgrade, it is an incompatibility, so this is worth confirming before you order rather than after.
What warranty and support are included?
2 years on the unit, and 2 years on installation and service when we install. Monitoring configuration and network integration come with the installation, and [PSW Life Support](/psw-life-support) covers you afterwards. If you want a longer manufacturer term on an AC charger, the [Sungrow](/product/sungrow-ev-charger) and [myenergi zappi](/product/myenergi-zappi-ev-charger) units both run 3 years, and we would rather point that out than not.
Can I add a battery to the same system later?
Yes, if your Goodwe inverter is a hybrid. The [Goodwe Lynx Home F](/product/goodwe-lynx-home-f-series) pairs with the EH and ET hybrid models on the DC side. A Goodwe string inverter will not take it without an inverter change, so if a battery is on your horizon it is worth sorting the inverter question now rather than paying twice. Switchboard modification, extended cabling and multi-level access are itemised in [additional installation costs](/additional-installation-costs).
Full specifications
Specifications.
Review the hardware, installation and warranty details.
System
- Make
- Goodwe
- Model
- HCA
- Cable
- 6m (Type 2 handle)
- Charger type
- AC Fast Charger
- Software
- Goodwe
- Output
- 32 amp
- Installation
- PSW in-house installation
- Inclusion 1
- Monitoring configuration & network integration (with installation)
- Inclusion 2
- PSW Life Support (with installation)
Warranty
- Warranty
- 2 years (24 months)
- Installation & service warranty
- 2 years (with installation)
Quote basis
Installation & quote details
- Charger unit and mounting
- Switchboard protection and circuit
- Cable run up to 10 m included
- Electrical compliance certificate
- App pairing and first charge test
Your written quote confirms the final equipment, site conditions, eligibility and any extra work before you commit.
When extra costs apply ↗More about Goodwe HCA EV charger
- Goodwe HCA
- 7, 11 or 22 kW fast charger
- Type 2 (6m) handle
- iOS and Android monitoring
- 2 year warranty
- PSW Life Support
It’s the electric vehicle charger to complement your Goodwe inverter powered energy ecosystem for sun connected driving. The Goodwe HCA EV charger by PSW Energy.
Compatible products.

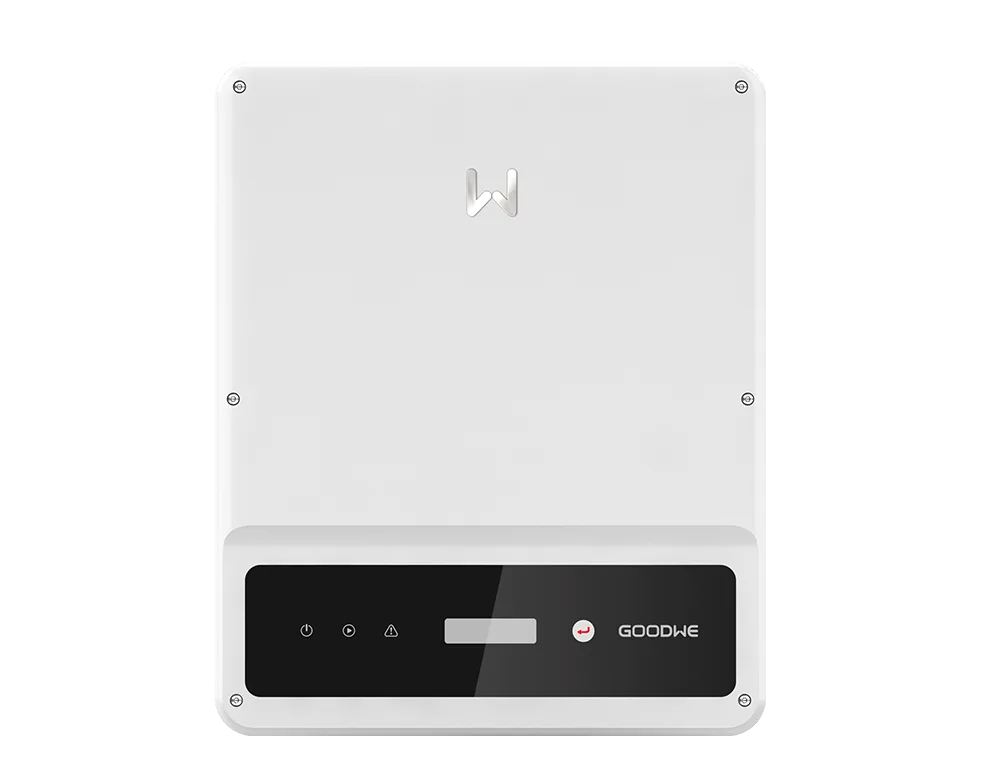

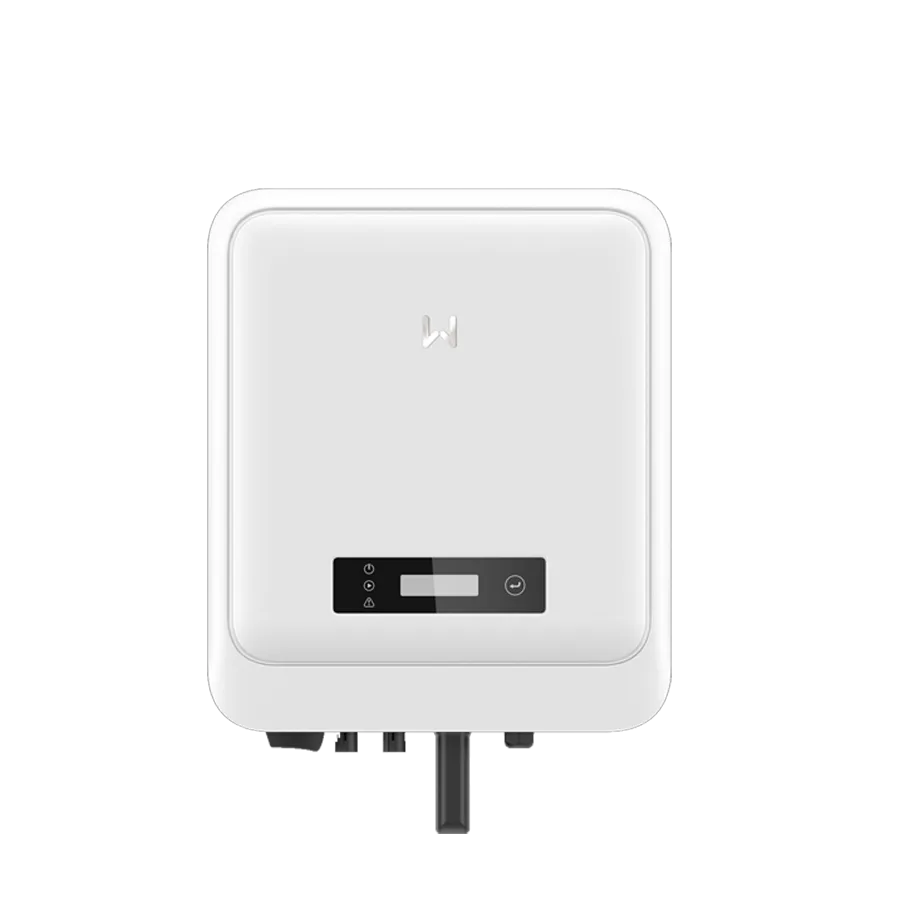

DNS-G3
- 3, 5 kW
- 1 phase
- 10 year warranty
- HCA compatible: Yes
Discover
SDT-G2
- 5, 8, 10 kW
- 3 phase
- 10 year warranty
- HCA compatible: Yes
Discover

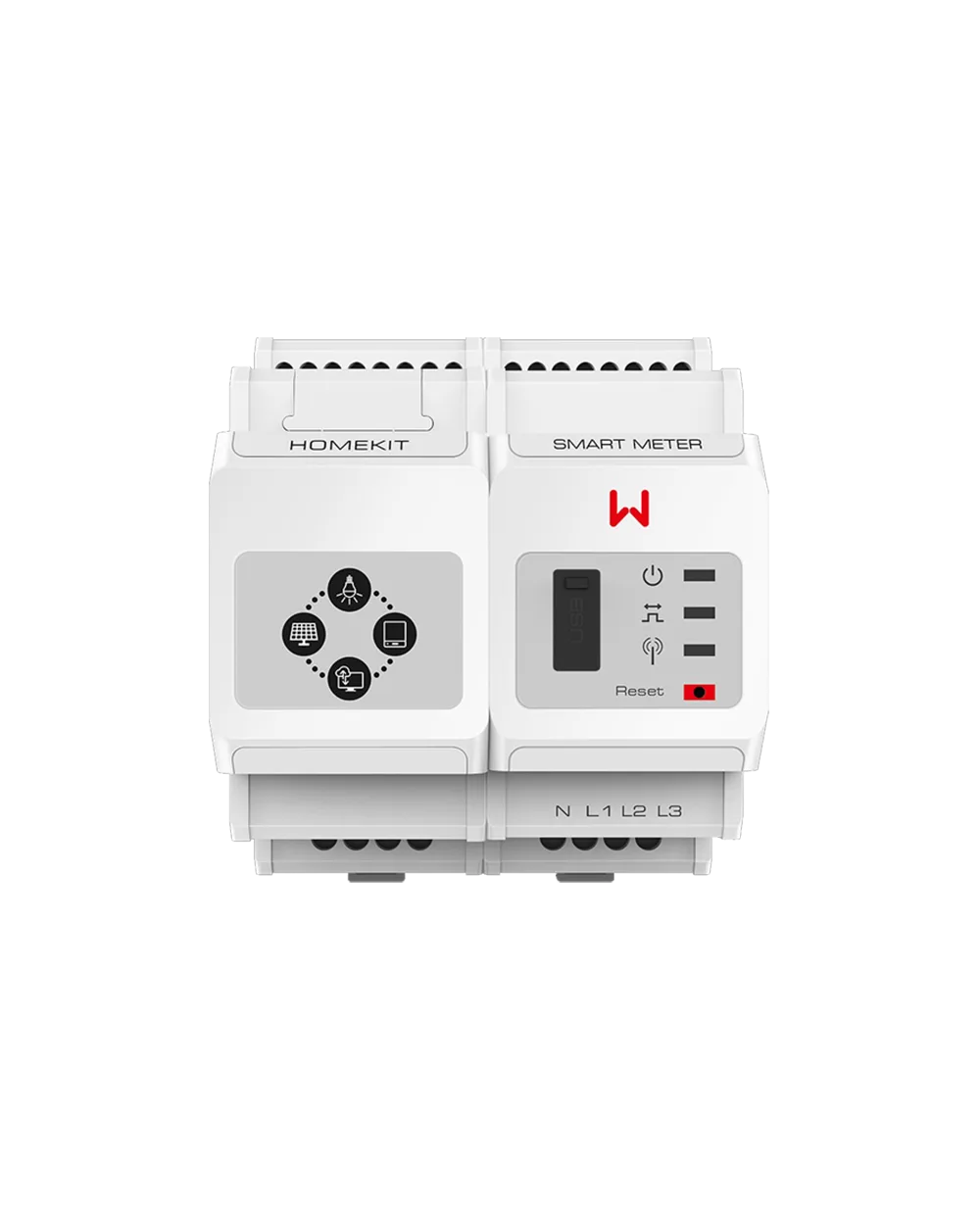

Homekit
- Energy consumption/export monitoring
- 1 or 3 phase
- Export management
- Required for sun connected function
The Goodwe HCA is adaptable EV charging for your electrified lifestyle.
Goodwe HCA questions? Contact sales support ›
Add a battery?

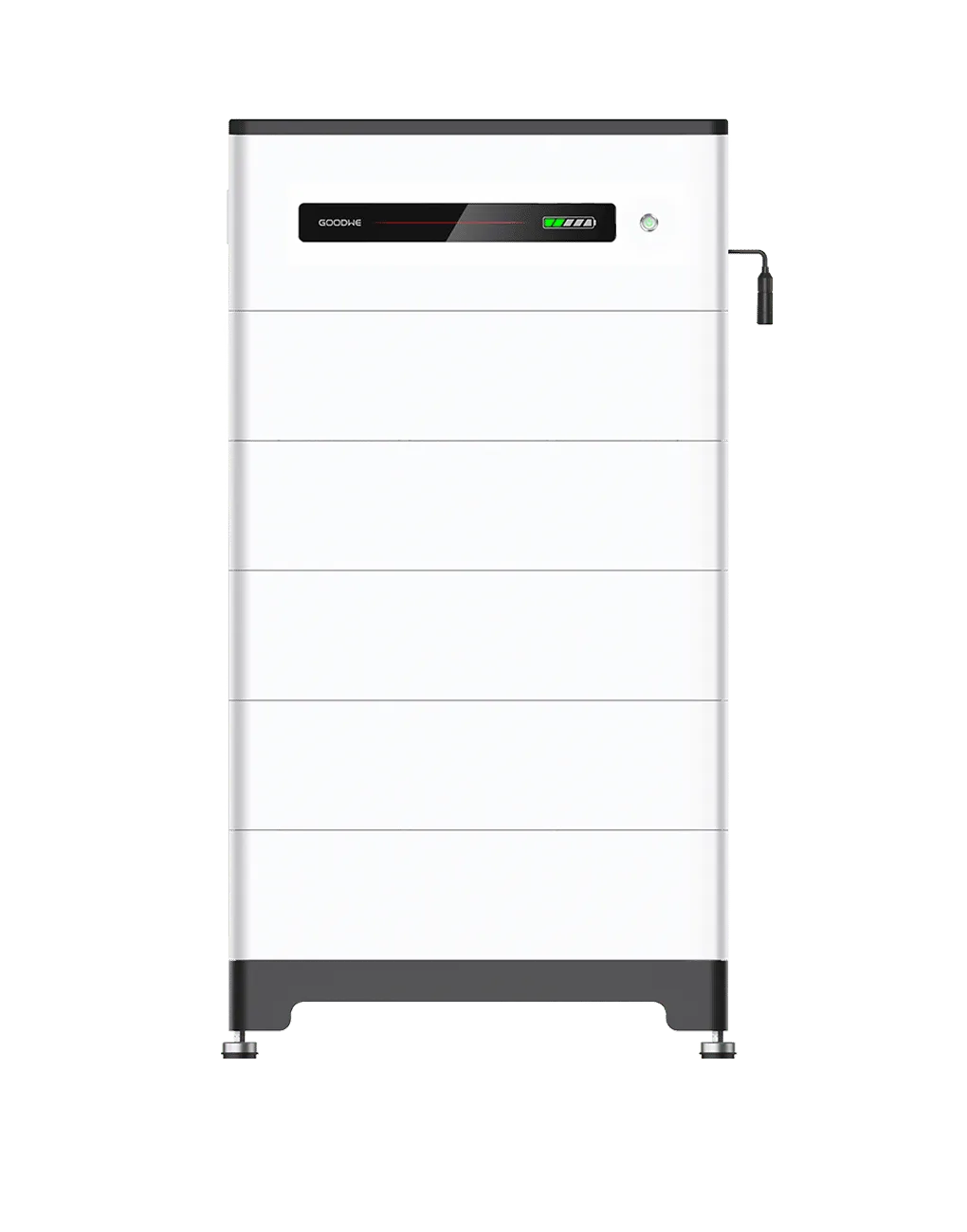

Goodwe Lynx
Modular DC coupled energy storage. Suits Goodwe ET & EH inverter models.

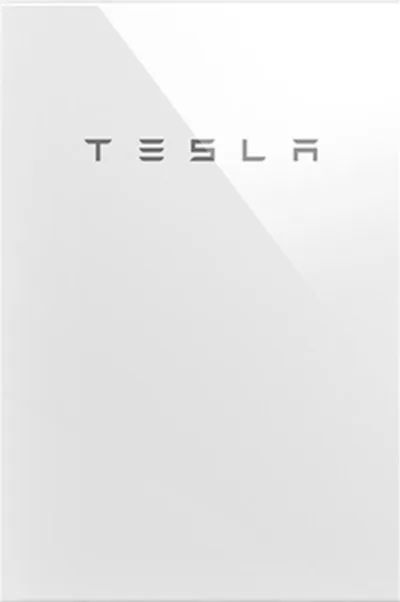

Powerwall
Powerwall stores 13.5 kWh per unit. Suits all Goodwe inverters.
PSW Life Support.
Included. A local technical expert by your side, always. Learn more ›
