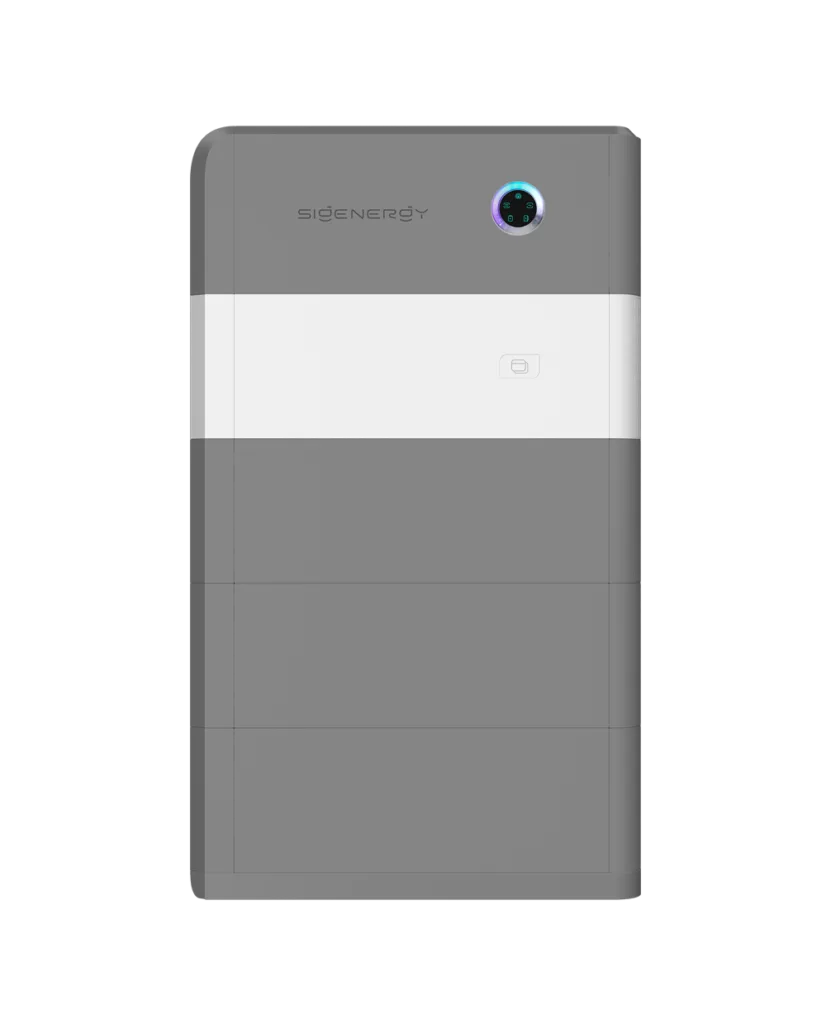

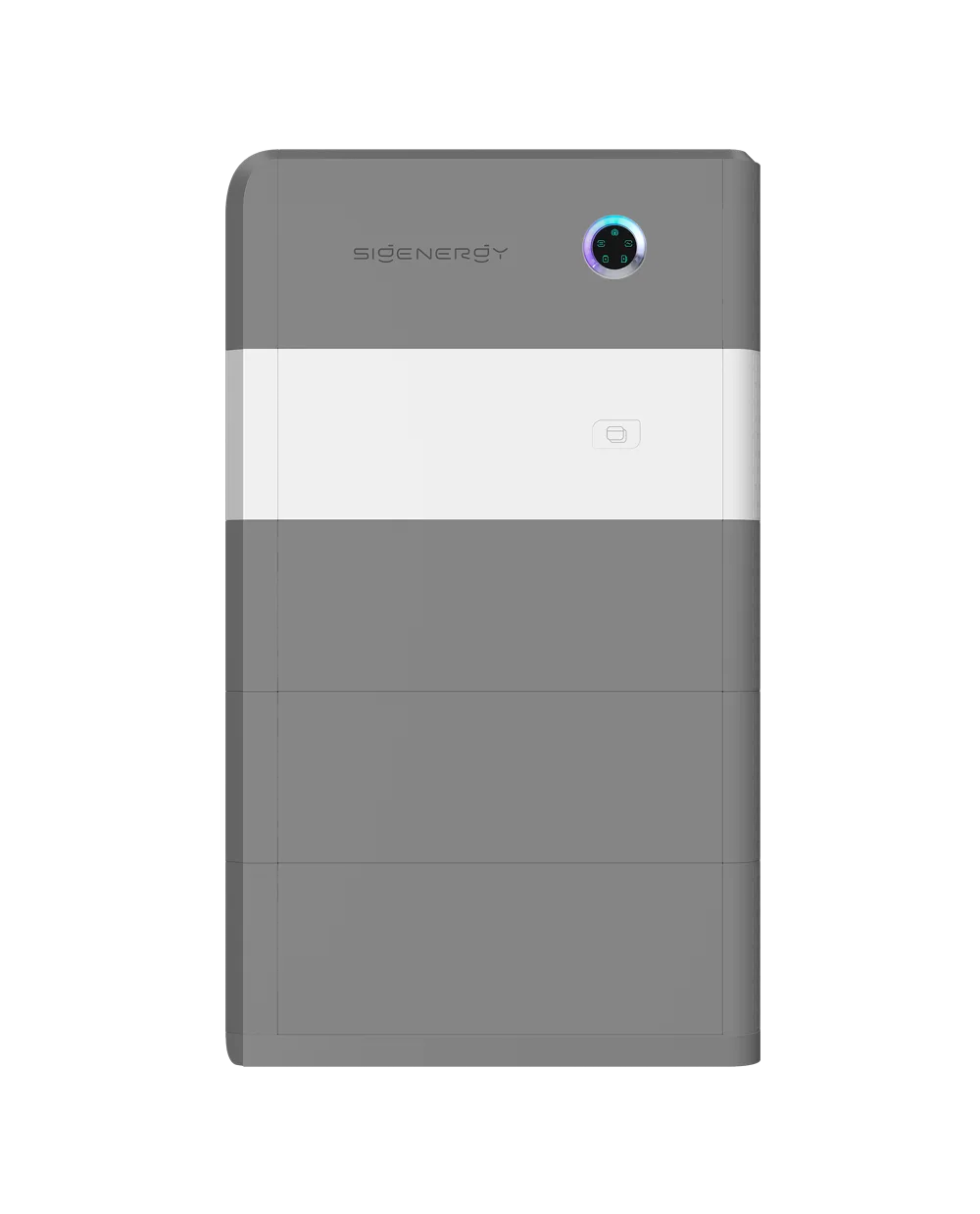

Sigen Battery 9 kWh module

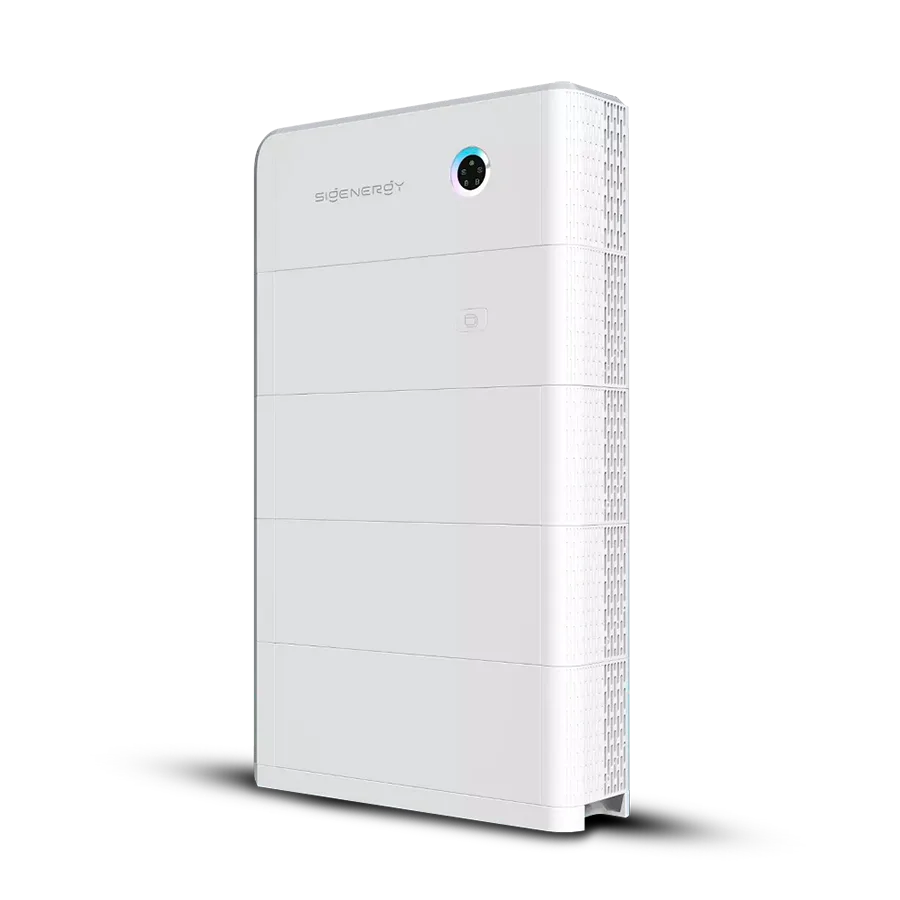

5kWh Sigen Battery by PSW Energy 1
Representative imagery. Your quote confirms the exact model.

Energy for later.
Designed around you.

Storage is one part of the system. Your existing solar, daily routine and backup priorities shape the right configuration.

Your system, considered.

Sigen Battery modular storage. Exact equipment is confirmed in your written quote.

  • Compatible inverter or coupling method
  • Usable capacity and backup priorities
  • Phase, location and rebate eligibility
Installed price on quote
Ask a question

Fully installed price for standard single-storey installations in Perth & Bunbury WA. Site-specific extras are itemised before you commit. See extra costs.

A few questions first ↓

Your home.
The right connection.

Storage is one part of the system. Your existing solar, daily routine and backup priorities shape the right configuration.

01

Solar + battery.

Design generation and storage together as one complete home energy system.

Explore this direction ↗
02

Add a battery.

Match storage, controls and backup options to the solar equipment already at the property.

Explore this direction ↗

Good questions.
Plain answers.

The detail should be easy to find.

Can I buy just the battery module?

No. The Sigen Battery needs a Sigen Energy Controller to operate. The module is one part of a SigenStor stack: the Energy Controller is the inverter, battery management and energy management in one unit, and the battery will not run without it. A Sigen Energy Gateway is added when you want blackout protection. This is worth understanding before comparing headline prices against an all-in-one battery, because the quoted battery module is not the whole system. The [SigenStor datasheet](/media/2024/05/Datasheet-SigenStor-Home.pdf) shows how the parts fit together.

How large can a Sigen system get?

9kWh per module, up to 52kWh usable in a single tower. You start at 9kWh and add modules as your needs change, which suits a household that expects to add an electric vehicle or a pool later. For rebate purposes the size past a point stops mattering: the WA Residential Battery Scheme caps at $1,300 for Synergy customers, reached at 10kWh usable, and the federal Cheaper Home Batteries Program pays its full STC factor only on the first 14kWh, then tapers. Past roughly 14kWh you are buying capacity on its merits, not for the rebate.

What about the Sigenergy recall in Australia?

It covers three single-phase Energy Controller models, not the battery modules. Sigenergy issued a voluntary recall on its 8kW, 10kW and 12kW single-phase Energy Controllers after isolated reports of damaged AC plugs. The cause was traced to installation practice rather than a cell or product defect: the original plug design needed ferrules and crimping, and those steps were sometimes skipped. Sigenergy redesigned the plug, pushed a firmware update, and is replacing affected inverters free of charge with a two-year warranty extension. We would rather you read the detail than the headline, so here is [the full account and the next steps](/learn/sigenergy-voluntary-product-recall-australia).

What can a SigenStor system do that a conventional battery cannot?

Bidirectional DC vehicle charging, from the same stack. Adding the [Sigen EV DC Charging Module](/product/sigen-ev-dc-charging-module) gives the system vehicle-to-home capability, so a compatible car becomes a second battery during an outage. That is a genuine capability difference rather than a specification one, and it is the main reason a household picks this platform over a sealed all-in-one. Our review of the platform is in [SigenStor defines a new digital battery era](/learn/sigenstor-by-sigenergy-defines-a-new-digital-battery-era).

What warranty applies, and who installs it?

10 years on the battery, installed by a Sigenergy Gold Certified Installer. PSW Energy holds Sigenergy Gold Certified Installer status in WA, and the installation and service cover runs alongside the manufacturer term. The claim conditions are in the [SigenStor warranty document](/media/2025/10/Sigenergy-SigenStor-warranty-Australia-20251006.pdf). Installation is by a WA licensed electrical contractor with SAA accredited installers, and [PSW Life Support](/psw-life-support) covers the years after commissioning.

Full specifications

Specifications.

Review the hardware, installation and warranty details.

Detailed specification

System

Battery make
Sigenergy
Battery Model
Sigen Battery [for Sigenstor]
Battery size
Modular: 9 kWh increments up to 52 kWh [useable] per tower
Depth of Discharge (DoD)
100%
Max power output
See datasheet
Power configuration
DC coupled
Software
mySigen App
Compatible inverters
Sigen Energy Controller - required to operate
Installation
Base installation included. /additional-installation-costs
Inclusion 1
Monitoring configuration & network integration (with installation)
Inclusion 2
PSW Life Support (with installation)

Warranty

Battery warranty
10 year
Installation & service warranty
10 year

Quote basis

Site-specific extras
multi-level, switchboard modification, back-up power and travel are quoted only when required. Common examples are explained in the installation-cost guide.
Installation area
Limited to selected regions of Western Australia. PSW Installation Zone 1
PSW Certifications
WA Licensed Electrical Contractor, SAA Accredited Installer, NETCC Approved Seller, Bureau Veritas certified ISO 9001, 14001, 45001 (Quality, Environment, Safety), Sigenergy Gold Certified Installer
Installation & quote details
  • Battery, mounting and enclosure
  • Hybrid or retrofit inverter integration
  • Backup circuit configuration
  • WA battery rebate paperwork
  • Monitoring app setup before we leave

Your written quote confirms the final equipment, site conditions, eligibility and any extra work before you commit.

When extra costs apply ↗
More about Sigen Battery 9 kWh module
  • Sigen Battery
  • 9 kWh modular options (up to 52 kWh combined per tower)
  • DC coupled
  • 10 year warranty
  • Sigenergy Gold Certified Installer
  • PSW Life Support ›


Sigen Battery for a new digital era of energy storage. Surpass with Sigenstor by Sigenergy. Smarter, Safer, flexible.

Compatible products.

As one of the most flexible modular energy ecosystems, it helps to understand the essential Sigenergy components within the wider system.

Controller

  • Sigen Energy Controller/Inverter
  • 1 or 3 phase power supplies
  • 3 to 29.9 kW output
  • Solar and Battery inverter + BMS + EMS


Shop

Sigenergy Energy Controller by PSW Energy
Sigenergy Gateway

Gateway

  • Sigen Energy Gateway
  • 1 or 3 phase power supplies
  • Supply monitoring
  • Blackout protection options


Shop

SigenStor EV DC Charging module by PSW-Energy

DC Charger

  • Sigen DC EV Charger
  • 12.5 kW or 25 kW
  • V2X compatible (bidirectional)
  • Ultra-efficient charging


Shop

Analogue vs Digital. Determine if the new generation of digital solar is ideal for you. Sigenergy defines a new digital battery era ›

Sigen Battery questions? Contact sales support ›

Upgrade your solar?


All solar

PSW Life Support.

Included. A local technical expert by your side, always. Discover ›

Charge your car.

When you’re ready to electrify your mobility, PSW has your SigenStor-compatible electric vehicle chargers and accessories.

DC EV Charger

Ultra-efficient DC fast charging combined with bidirectional (V2X) capabilities. The Sigen DC EV charger is exactly what customers have been waiting for. 12.5 or 25 kW output.


Shop

SigenStor EV DC Charging module by PSW-Energy

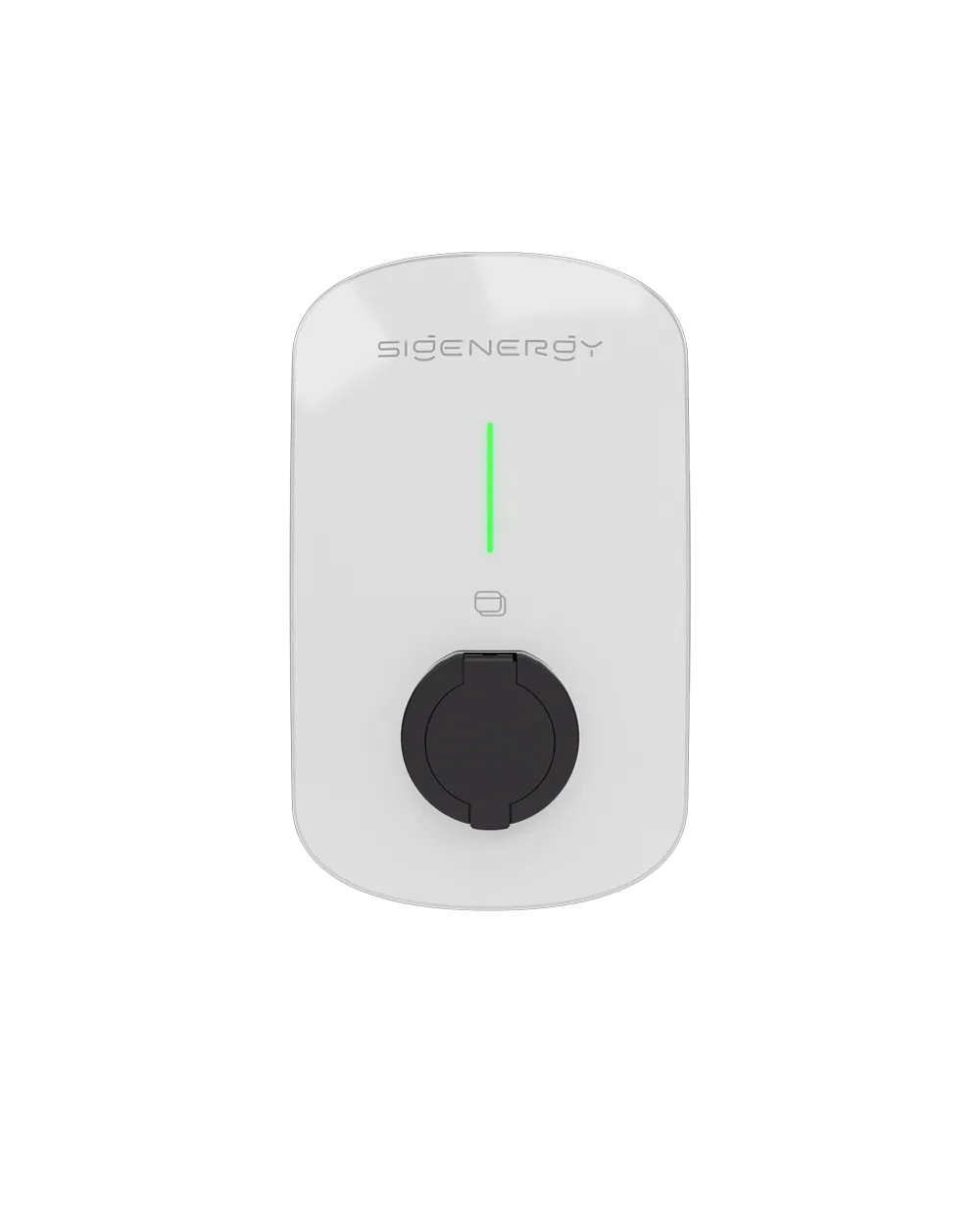

AC Charger

Choose the Sigen EV AC charger where charging locations differ from the SigenStor location. 7, 11, 22 kW options.


Shop

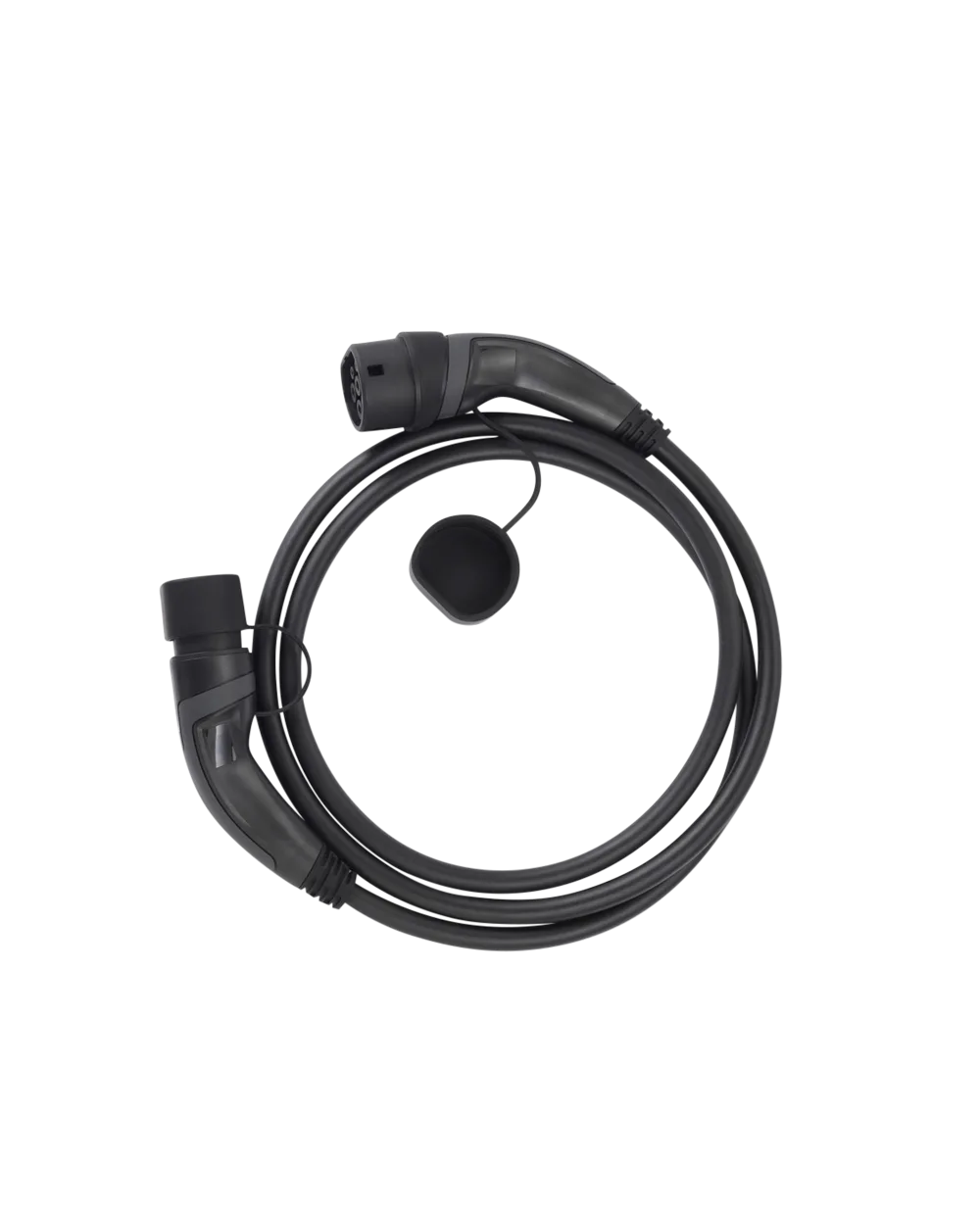

Type 2 to Type 2 EV Charging Cable

Type 2 cable

Type 2 to Type 2 heavy-duty 22 kW charge cable for untethered EV chargers. Suits 7, 11 and 22 kW charging.


Shop
