Growatt ARK XH solar battery

10 kWh ARK XH HV Lithium Solar Battery — Representative imagery. Your quote confirms the exact model.

Energy for later.
Designed around you.

Storage is one part of the system. Your existing solar, daily routine and backup priorities shape the right configuration.

Legacy product · check availability

Growatt ARK XH battery family. Exact equipment is confirmed in your written quote.

Compatible inverter or coupling method
Usable capacity and backup priorities
Phase, location and rebate eligibility

Installed price on quote

Choose your option.

Ask a question

Fully installed price for standard single-storey installations in Perth & Bunbury WA. Site-specific extras are itemised before you commit. See extra costs.

A few questions first ↓

Your home.
The right connection.

Storage is one part of the system. Your existing solar, daily routine and backup priorities shape the right configuration.

Solar + battery.

Design generation and storage together as one complete home energy system.

Explore this direction ↗

Add a battery.

Match storage, controls and backup options to the solar equipment already at the property.

Explore this direction ↗

Good questions.
Plain answers.

The detail should be easy to find.

How much of the Growatt ARK XH can I actually use?

90% of it. The depth of discharge is 90%, not 100%. This is the specification most worth understanding on this product. A 10kWh ARK XH gives you about 9kWh usable, and both rebate schemes pay on usable capacity rather than the nominal number: the WA Residential Battery Scheme at $130 per usable kWh for Synergy customers, and the federal program creating certificates on usable kWh. It is not a fault, and plenty of good batteries sit at 90%. It does mean that comparing this against a 100% depth-of-discharge battery on nominal capacity alone will mislead you by roughly a tenth.

Which inverter do I need?

A Growatt MIN XH hybrid. This battery does not work with anything else. That is a narrower compatibility list than most batteries on this site, and it is the first thing to check. If you have a Growatt string inverter rather than the MIN XH hybrid, the battery will not connect without an inverter change, and a Growatt energy meter is also required. Both are quoted separately if you need them. Where a Growatt inverter is already on the wall and it is the right model, this is one of the more affordable ways into storage.

How small can I start?

2.5kWh, in 2.5kWh increments up to 15kWh. The 2.5kWh unit ships without a battery management system, so a working configuration starts at 5kWh. Fine-grained steps suit a household that wants to cover the evening peak without paying for capacity that sits idle overnight. Bear the 90% usable figure in mind when you size: a 10kWh configuration covers about 9kWh of real evening load.

What does the installed price cover?

Installation within 1m of an existing compatible Growatt inverter, plus monitoring setup. A Growatt energy meter is required and quoted if you do not have one. Backup power, travel outside our installation zone, and delivery are itemised where they apply, and the full list is in [additional installation costs](/additional-installation-costs). Monitoring runs through Growatt ShineServer and the network integration is done at commissioning, with [PSW Life Support](/psw-life-support) covering the years after.

Full specifications

Specifications.

Review the hardware, installation and warranty details.

Detailed specification

System

Battery make: Growatt ARK XH
Battery size: 2.5 kWh, 5 kWh, 7.5 kWh, 10 kWh, 12.5, 15 kWh
Depth of Discharge (DoD): 90%
Max power output: See datasheet
Power configuration: DC coupled
Software: Growatt ShineServer
Compatible inverters: Growatt: MIN XH hybrid
Installation: PSW in-house installation: Within 1m to an existing compatible Growatt inverter, Growatt energy meter required (with installation)
Inclusion 1: Monitoring configuration & network integration (with installation)
Inclusion 2: PSW Life Support (with installation)

Warranty

Battery warranty: 10 year
Installation & service warranty: 10 year (with installation)

Quote basis

Site-specific extras

growatt inverter, growatt energy meter, back-up power, travel and delivery are quoted only when required. Common examples are explained in the installation-cost guide.

Installation area

PSW Installation Zone 1

PSW Certifications

WA Licensed Electrical Contractor, SAA Accredited Installer, NETCC Approved Seller, Bureau Veritas certified ISO 9001, 14001, 45001 (Quality, Environment, Safety)

Installation & quote details

Battery, mounting and enclosure
Hybrid or retrofit inverter integration
Backup circuit configuration
WA battery rebate paperwork
Monitoring app setup before we leave

Your written quote confirms the final equipment, site conditions, eligibility and any extra work before you commit.

When extra costs apply ↗

More about Growatt ARK XH solar battery

Growatt ARK XH battery
DC coupled
Modular 2.5 kWh storage
Safe LiFePO4 technology
10 year warranty
PSW Life Support

Your Local Growatt Experts

The Growatt ARK XH makes battery adoption affordable with the Growatt XH hybrid inverter. Customise your ideal size with 2.5 kWh increments.

Compatible products.

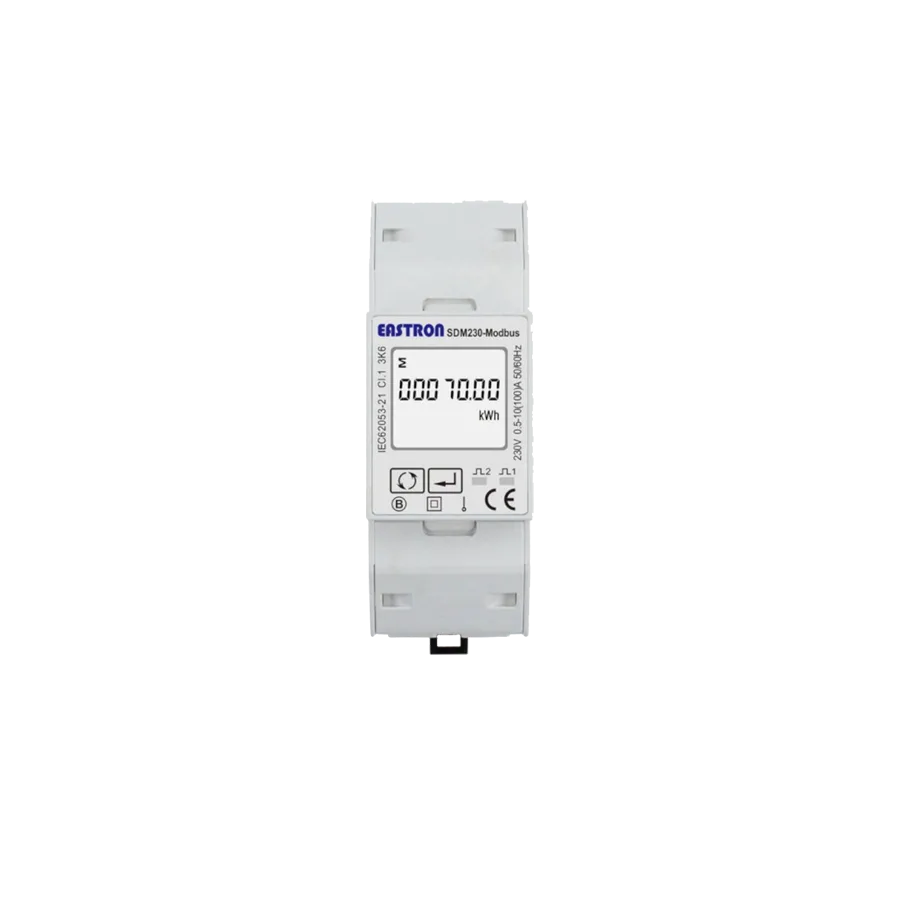

Energy Meter

Export load control
1 phase
Energy consumption monitoring
EV Charger solar optimisation

Datasheet

Growatt XH Hybrid Inverter

RT Hybrid

Solar & Battery inverter
1 phase
5 kW
Blackout protection options

Discover

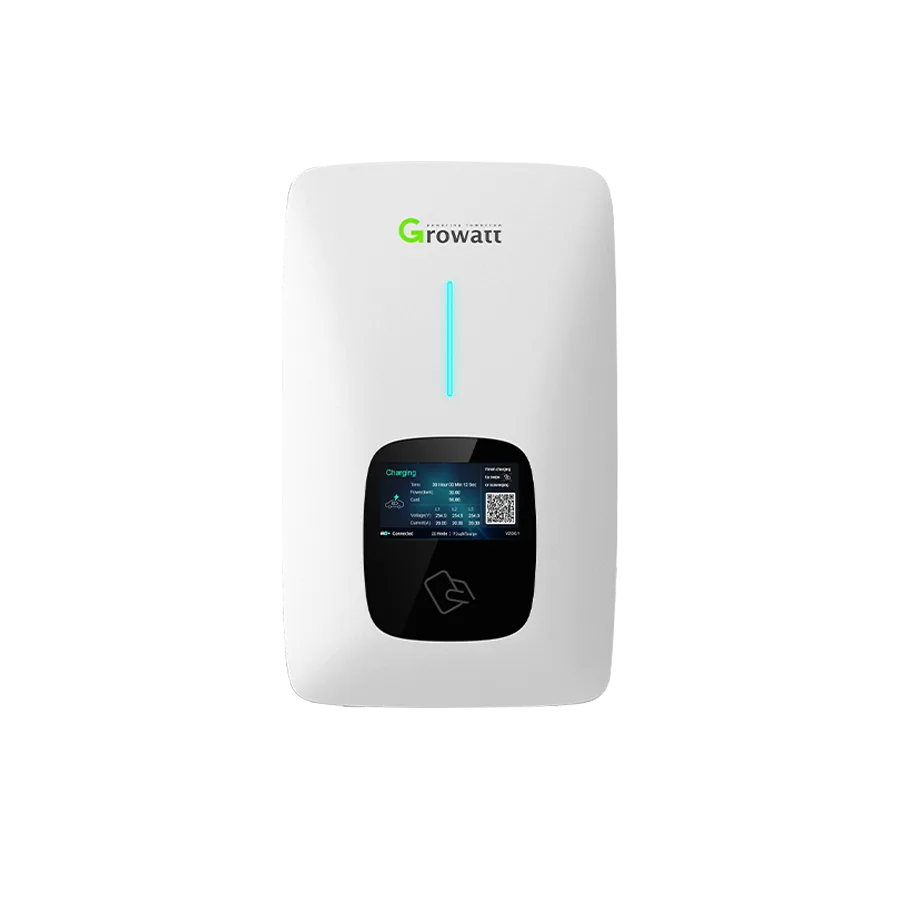

EV Charger

AC Fast EV charger
7, 11 or 22 kW
Solar optimisation*
*Growatt energy meter required

Datasheet

Accelerating energy storage with affordable and safe modular design.
